ब्रांड नाम: | PRECISION |
मॉडल संख्या: | वीटीएस -70 |
एमओक्यू: | 1 |
कीमत: | $6000 |
भुगतान की शर्तें: | टी/टी |
आपूर्ति करने की क्षमता: | 100/माह |

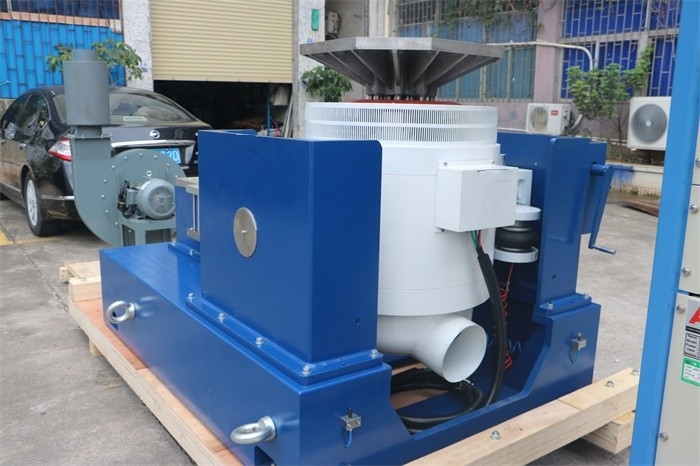

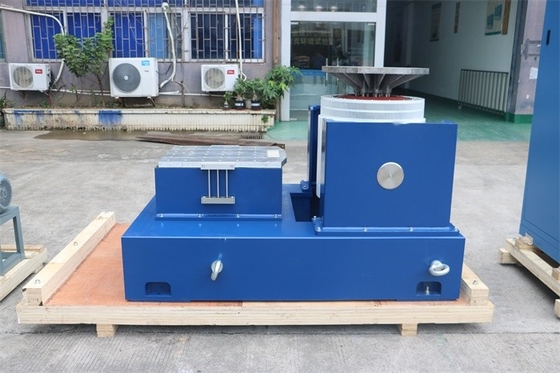

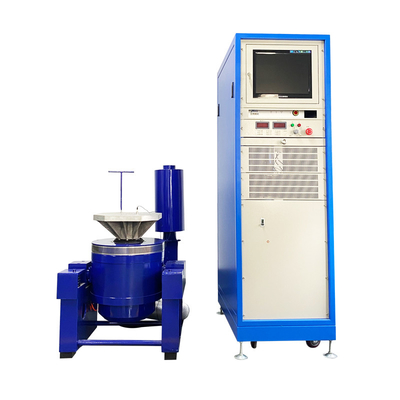

Our battery vibration testing equipment is specifically engineered to perform the stringent 8gn vibration test as required by the UN 38.3 standard for lithium-ion battery packs and cells. Designed for precision and reliability, these systems accurately simulate the demanding vibrational stresses encountered during transportation, ensuring the safety, mechanical integrity, and regulatory compliance of your battery products. Our equipment provides the precise control and accurate replication of the UN 38.3 vibration profile, guaranteeing your batteries meet critical international safety requirements for transport.
Technical Specifications:
Rated Sine/ Random/ Shock Force | 1,100 kgf/1.100 kgf/2200 kgf | Armature Mass | 13 kg |
Frequency Range | 5-3500 Hz | Inserts Size (Standard) | M10 |
Max./Continuous Displacement p-p | 51 mm/51 mm | Load Attachment Points (Standard) | 25 |
Max. Velocity | 2.0 m/s | Natural Frequency-Thrust Axis | <3Hz |
Max.Sine/ Random Acceleration | 85/60g | Max. Vertical Load Support | 300 kg |
Armature Diameter | 335 mm | Stray field @152 mm above table | ≤lmT (10 gauss) |
Fundamental Resonance Frequency | 3,000 Hz (nom) ±5% | Dimension LxWxH | 940 mmx715 mm* 780 mm |
Allowable Armature Overturning Moment | 300 Nm | Weight (Uncrated) | 1.000 kg |
Are you ready to ensure your battery products meet essential international safety standards? Contact our experts today to discuss your UN 38.3 8gn battery vibration test requirements and discover the ideal electrodynamic vibration test machine solution.
